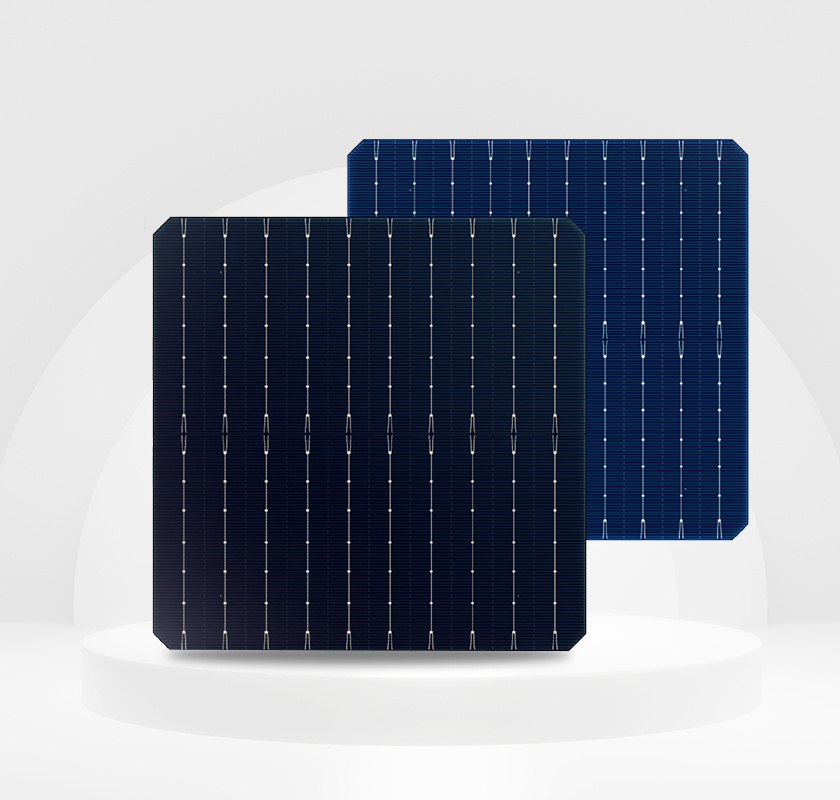

182-16BB N-type TOPCon Monocrystalline cell
Jietai Chuzhou Base
| Technique data | CZJT-182M-16D1 |
|---|---|
| Front | 16 busbars |
| Rear | 16 busbars |
| Thickness | 130±13μm |
| Dimensions | 182mm*182±0.25mm, φ247.28mm±0.35mm |
| Current Temperature Coefficient | +0.045%/℃ |
| Voltage Temperature Coefficient | -0.25%/℃ |
| Power Temperature Coefficient | -0.30%/℃ |
LID
Lower LID
PID Resistance
Exceptional PID resistance
Lower Sealing Damage
Lower sealing losses, better suited to high efficiency module
Lower Power Temperature Coefficient
The power temperature coefficient down to -0.30%/℃
Better Performance in Low Irradiance Environment
200W/m relative conversion rate in low irradiance environment ≥97%
High Conversion Efficiency
Front-side efficiency ≥25%
Bifaciality≥85%
182-10BB N-type TOPCon Monocrystalline cell
Jietai Chuzhou Base
| Technique data | CZJT-182M-10D5 |
|---|---|
| Front | 10 busbars |
| Rear | 10 busbars |
| Thickness | 130±13μm |
| Dimensions | 182mm*182±0.25mm, φ247.28mm±0.35mm |
| Current Temperature Coefficient | +0.045%/℃ |
| Voltage Temperature Coefficient | -0.25%/℃ |
| Power Temperature Coefficient | -0.30%/℃ |
LID
Lower LID
PID Resistance
Exceptional PID resistance
Lower Sealing Damage
Lower sealing losses, better suited to high efficiency module
Lower Power Temperature Coefficient
The power temperature coefficient down to -0.30%/℃
Better Performance in Low Irradiance Environment
200W/m relative conversion rate in low irradiance environment ≥97%
High Conversion Efficiency
Front-side efficiency ≥25%
Bifaciality≥85%
